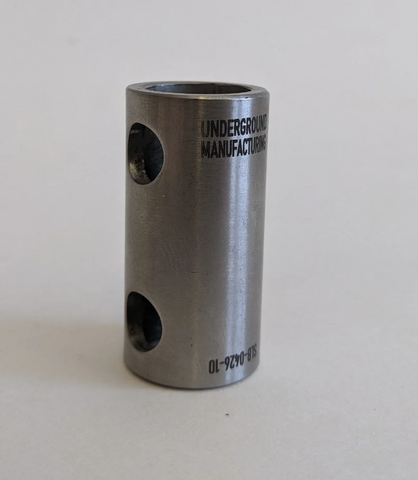

Underground Manufacturing Micro Rack Replacement Bars
Keep your micro rack in service with replacement bars from Underground Manufacturing. Choose the slide bar, swing bar, or hyper-bar from the options above. Each bar is sold individually and made from 304 stainless steel.
These bars are designed for U-frame micro racks with 5/16" (8 mm) frame rods and 1" (25.4 mm) spacing between rod centers. Each has a 7/8" outside diameter, 1/8" wall thickness, and 1" hole spacing, center to center.
The hyper bar includes a stainless steel roll pin installed in the standard right-hand position. Check your rack’s dimensions and the bar type you need before ordering. After installation, inspect the fit and test your setup in a controlled setting before using it on rope.
