Rock Exotica Omni-Block Laser Resultant Finder
P53L

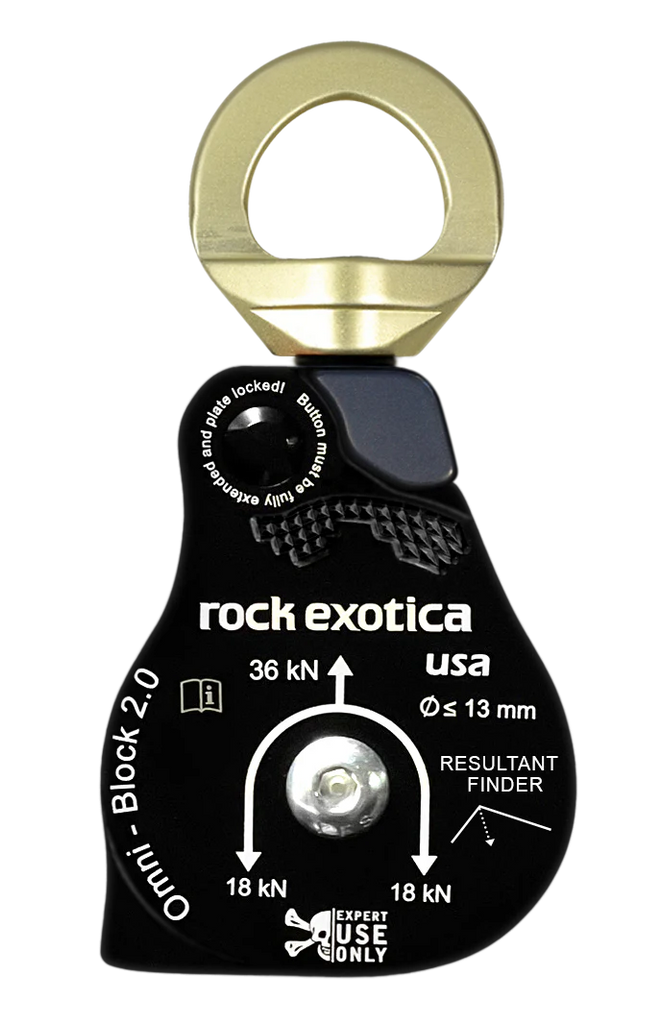

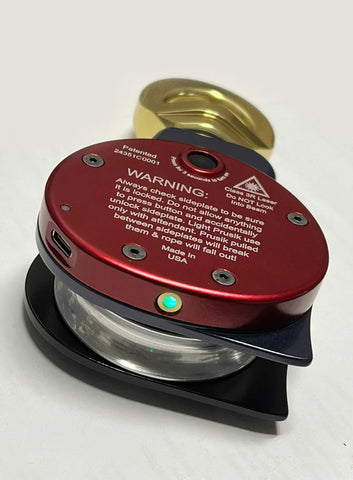

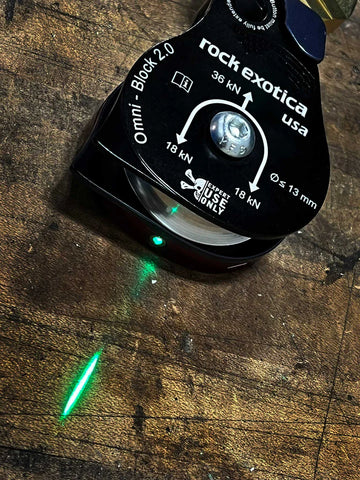

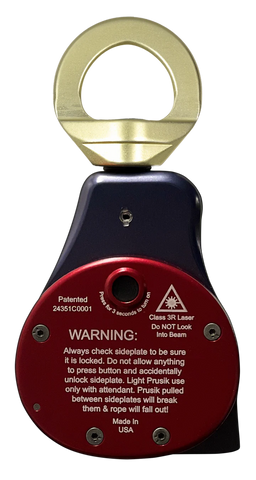

The Omni Resultant Finder pairs a 2.0" Omni Block with a green Class 3 laser to visually indicate the resultant of a pulley—defined as the bisector of the rope path in a single-pulley redirect.
The Omni Laser Resultant Finder (LRF) is designed for both live operations and training applications, helping users better understand load direction and system geometry
Important Note: In complex, multi-pulley systems—or in winch/tie-off-on-leg applications—the laser-indicated resultant does not represent the direction of applied force. Do not rely on the LRF to indicate applied force in these scenarios. The LRF is never a substitute for properly guying, securing, and backing up an artificial high-directional.
Includes waterproof case, usb-c charging cable and wall plug.
SPECS:
MBS: 36kN
WLL: 8 kN
Sheave Diameter: 2.0" (51 mm)
Max Rope: .5” (13mm)
Height: 5.8” (148 mm)
Width: 3.0” (76 mm)
Weight: 12.3oz (348gm)
Certification: N/A
