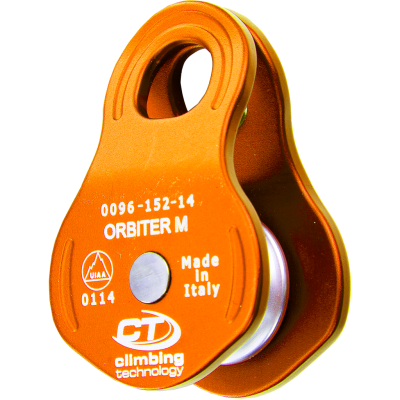

Climbing Technology Orbiter M Mini Pulley
Pulley with mobile side plates that allow the insertion of any connector.
Main features:
- made in anodized light alloy;
- sheaves mounted on self-lubricating bushings;
- for use with ropes Ø ≤ 13 mm;
- designed for hauling systems and deviations.
| Art.Nr. | H-270 |
|---|---|
| GTIN | 8056734837025 |
| Customs tariff number | 76169990 |
| Standards | EN 12278:2007,UIAA 127 |
| Gross weight | 0.09 kg |
| Net weight | 0.09 kg |
| Material | Aluminium, Stainless Steel |
| Application areas | Arborists, Emergency, Facades cleaning, Off Shore Industry, Rescue, Rope access, Shaft, Tactical approach, Working in confined spaces, Working on masts and towers |
| Colour | Orange / Silver |
| Minimum temperature | -30 °C |
| Maximum temperature | 40 °C |
| Dimension | 48x73x29mm |
| Attachment points bottom | 0 |
| Attachment points top | 1 |
| Backstop | No |
| Bearings | Bush |
| Brand | Climbing technology |
| Efficiency | 80.00 % |
| Maximum compatible rope diameter | 13.00 mm |
| Maximum lifetime | 30 years |
| Minimum tensile strength | 30.00 kN |
| Number of rolls | 1 |
| Serial number mandatory | Yes |
| Usable in SEAL PAC | 30 years |
| Working load limit in kn | 5 kN |
